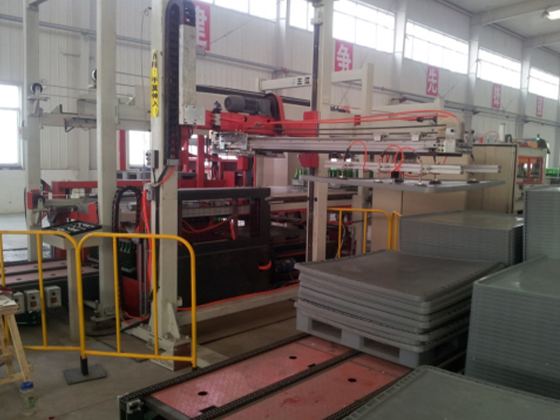

The automatic partition board machine uses vacuum suction cups to pick up the flat partition board and the top plate and place them on the tray. The partition and top plate conversion raceway works in conjunction with the automatic partition machine to pick up the partition or top plate in the set sequence. The partition and the top plate are required to be stackable and absorbable.

The body material of the automatic partition board machine is carbon steel, and its surface is sprayed with milky white paint. The lifting and lateral movement are driven by a reduction motor. The guidance adopts linear guides.

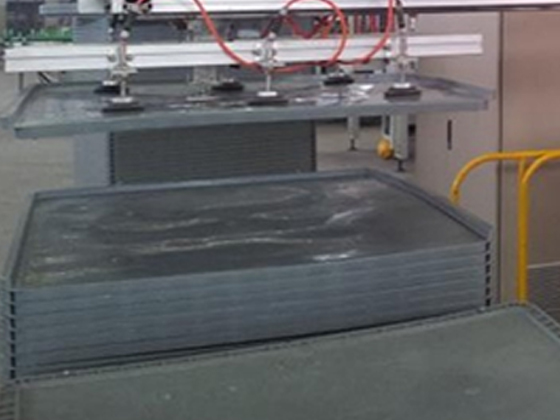

2.5.1 Vacuum suction cup type suction of cardboard;

2.5.2 Translational conveying

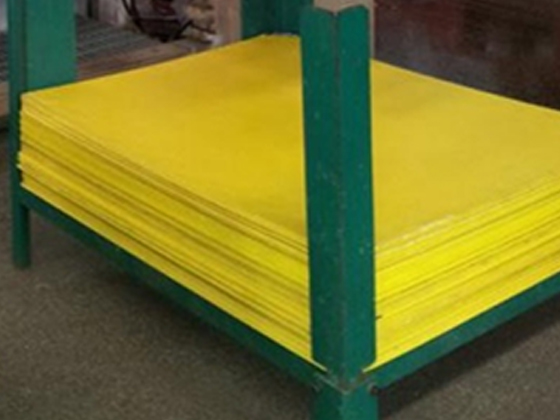

2.5.3 It is applicable to flat cardboard, plastic corrugated board, injection-molded partition board, and fiberboard (with light-absorbing surface).

2.5.4 No treatment is required for the ground foundation.

2.5.5 Equipment Color:

Rack: Milky white;

Moving parts: orange-red.
