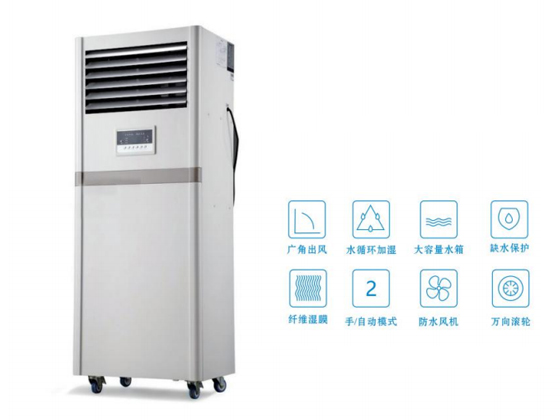

Wet Film Humidifier Series
I. Working Principle of Wet Film Humidifier
The wet film humidifier utilizes the evaporative nature of water. Water is continuously delivered to the top of the wet film via a water pump and distributor. The water is evenly sprayed onto the top of the wet film, and the sprayer ensures that the water is evenly distributed across the wet film material. As the water percolates downward through the wet film material, it moistens all the layers within the film and is absorbed by the material, forming a uniform water film. When dry air passes through the wet film, it comes into full contact with the large surface area of the wet film. The sensible heat in the air causes the water to vaporize, thereby increasing the humidity and achieving the purpose of humidification.
II. Advantages of Wet Film Humidifier
Clean and noiseless. It has a washing and filtering effect on the air. It has a humidifying and cooling effect. It humidifies with cleanliness and constant enthalpy, without producing "white powder" phenomena.
III. Features of Wet Film Humidifier
-
Fully automatic control via microcomputer, with real-time display of operating humidity and the ability to view ambient temperature.
-
Humidity adjustable in 5%RH increments, with a setting range of 30%-99%RH.
-
It has the control function to automatically turn off humidification and预约 (which seems to be a typo and might mean "schedule") to start humidification.
-
One-click cleaning function for automatic cleaning, draining, and waste removal.
-
A comprehensive system fault automatic diagnostic function for better machine maintenance.
-
Both automatic and manual water intake modes are available. The system is equipped with a water level detection device, with functions for water shortage and full water alarm shutdown, as well as overflow protection, to achieve safe water level operation.
-
High, medium, and low fan speeds are adjustable, and can be freely chosen according to needs.
-
It has an oscillating function that can automatically adjust the air delivery angle.
-
It has two working modes: humidification and ventilation. During humidification operation, it has dual effects of humidification and cooling.
-
The humidification is efficient, energy-saving, environmentally friendly, and has low operating costs.
